NXD 200Pro

Ultrafast 3D Printer for Dental Applications

The NXD 200Pro is the perfect dental 3D printer for high throughput dental applications. With an unprecedented 8.5L build volume measuring 275 x 155 x 200 mm (10.8 x 6.1 x 7.8 inch) and patented LSPc technology. This dental 3D printer is ideal for dental resin models, splints, impression trays, occlusal night guards, and more. The superior speed and workflow is complemented by intuitive interfaces and ease of use, ideal for dental labs.

Now $39,995

Save $9,995 was $49,990
NXD 200Pro Dental 3D Printer

Speed and Reliability Boost Productivity, Lower Total Cost of Ownership

Ultrafast 3D printing with validated materials and workflows bring dental manufacturing solutions you can trust—right to your lab. Meet the increased demand for volume with one faster, larger printer that saves on space, is easy to use and provides a lower cost per part.

Accurate, Repeatable 3D Printer for Dental Models

Benefit from 90-95% accuracy at 100µm, uniformity and repeatability from edge to edge on the NXD 200Pro build platform. Patient-specific 3D printed dental models, surgical guides, splints, trays, and night guards can be produced in-house with speed, reliability, and accuracy.

Validated Dental Workflows

Designed specifically for the dental industry, the NXD 200Pro offers world-class dental model manufacturing capabilities at ultrafast speeds with validated Keystone performance dental resins. The NXD 200Pro offers high throughput to keep dental operations productive, with a large build plate to create up to 20 flat 3D-printed dental models in less than 30 minutes.

Specifications

Build Volume275 x 155 x 200 mm (10.8 x 6.1 x 7.8 inch)
External Dimensions:21 x 20x 32 inch (53.34 x 50.80 x 81.28 cm)
Internal Dimensions:15.50 x 10.75 x 25.75 inch (39.37 x 27.30 x6 5.40 cm)
Weight:110 lbs empty (49.89 kg empty)
Max Resolution4K (3840 x 2160)
Pixel Pitch76.5 µm (0.0030 in)
Wavelength405 nm
Build MaterialsUV Curable Plastics: KeyModel Ultra; KeySplint Soft; KeyGuide; KeyTray

Download Brochure

More Materials, More Options

Download 2022 Materials Guide for Ultrafast 3D Printing

Material Guide White Paper

Download the guide now


NXD 200Pro industrial 3D printer is compatible with KeyPrint resin material

Resetting Dental Material Benchmarks

The NXD 200Pro raises the bar on productivity using dental materials:

  • KeyModel Ultra for dental models, aligners
    • Full build plates of 20 parts in 29 minutes
  • KeySplint Hard and Soft for splints, nightguards, and mouthguards:
    • Full build plates of 30-40 parts in one hour and 17 minutes
  • KeyGuide for surgical guides
    • Full build plates of 30-60 parts in one hour and 50 minutes
  • KeyOrtho IBT for bonding trays
  • KeySplint Hard for rigid dental splints

510(k) Compliance
Keystone materials, along with workflows, have been validated as Keystone Compatible by Keystone Industries, guaranteeing the production of safe and effective medical devices when used with the NXD 200Pro and the corresponding workflow.

Tyler Dowdle of Excel Orthodontics

“With just one NXD 200Pro, we’re replacing two Carbon 3D printers, and we could probably even replace the third one once we optimize our process – we’re just getting started.”

– Tyler Dowdle, Director of Operations at Excel Orthodontics

View Case Study

NXD 200Pro Ultrafast Dental 3D Printer Trays
NXD 200Pro Dental Model 3D Printer
KeySplint Soft 3D Printer Resin Material
KeyTray Dental Model 3D Printer Resin

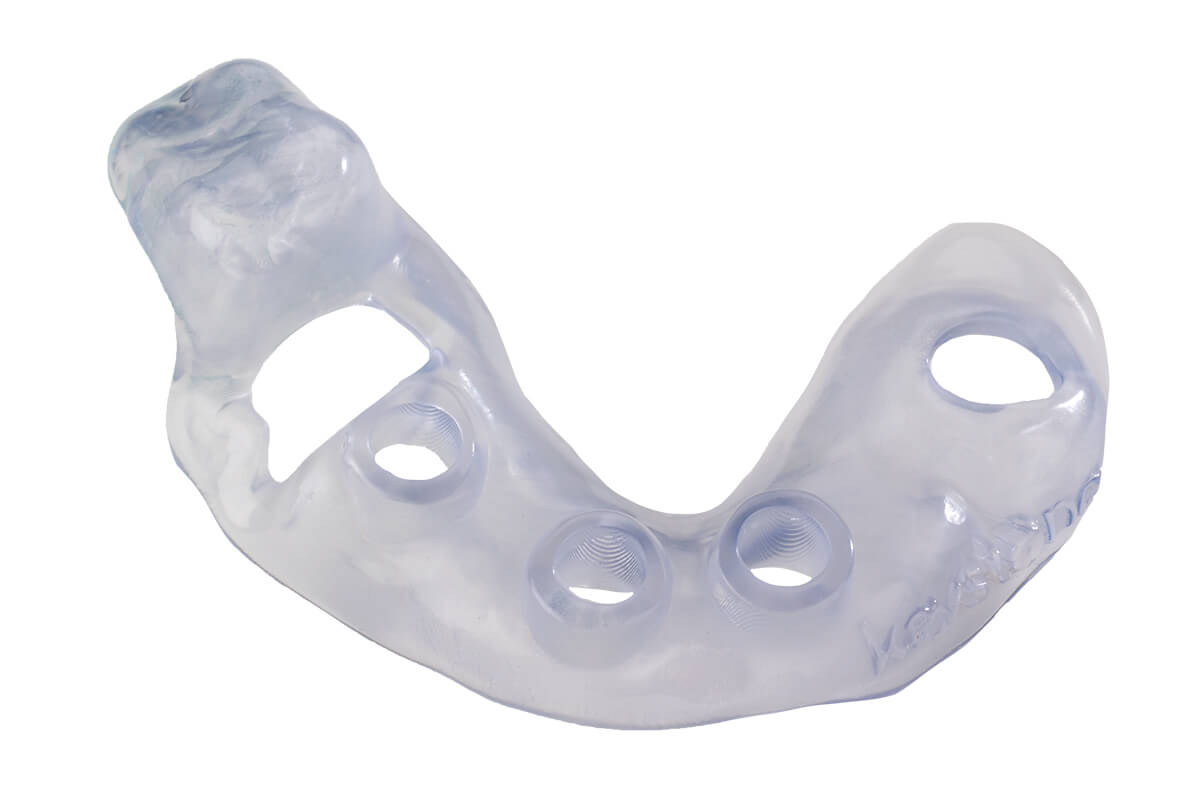

KeyPrint KeyGuide 3D Printer Resin Material
  • Ultrafast Dental 3D Printer Trays Thumbnail
  • Dental Model 3D Printer Thumbnail
  • KeySplint Soft 3D Printer Resin Material Thumbnail
  • KeyTray Dental Model 3D Printer Resin Thumbnail
  • KeyPrint KeyGuide 3D Printer Resin Material Thumbnail

Post-Production

xCURE and xWASH post-processing systems accommodates the full build volume of the NXD 200Pro and can accept up to two build platforms simultaneously for streamlined post-processing workflow.
xWash and xCure

Buy NexaX Pro

NexaX software enables process stability and print consistency for mass production of a variety of dental applications. It also provides APIs that make the integration of a variety of software tools easy, including full Oqton integration.
Buy NexaX Pro

Open Material Platform

Validated dental materials ensure biocompatibility you—and your patients—can trust. Ultrafast dental 3D printing with validated Keystone performance dental resins brings accuracy, reliability, and consistency right to the lab as you produce 3D-printed dental models.
Material Selector
