Ultrafast Industrial 3D Printer
No need to compromise—the NXE 200Pro 3D printer provides exceptional affordability for designers, engineers and manufacturers who need fast, accurate and cost-effective prototyping and manufacturing solutions. The NXE 200Pro is powered by LSPc technology, and its 200mm z-stroke is perfect for building smaller parts as as enabling downstream processes for semi-continuous production.
Now $39,995
Incredible Speed
Enjoy faster print speed without sacrificing accuracy or part quality. The NXE 200Pro uses patented LSPc technology which up to is 6.5x faster than traditional SLA and DLP 3D printing technologies.
Lowest Total Cost of Ownership
Delivering cost-effective production capabilities, the NXE 200Pro industrial-grade 3D printer’s industrial hardware with modular components is easy to service and upgrade, providing additional savings over time. With a slightly smaller build volume than the NXE 400Pro, it can still build 85% of desired production parts.
Quality Manufacturing and Part Production
Prototypes and manufactured parts need accuracy, aesthetics, and mechanical performance for design validation and end-use performance. Get all that and more using NXE 200Pro, which has a 4K LCD screen to provide uniform exposure and process control with high power/irradiance for beautiful, functional parts.
Specifications
| Build Volume | 10.8 x 6.1 x 7.8 inch (275x x 155 x 200 mm) |
| Max Resolution | 4K (3840 x 2160) |
| Pixel Pitch | 76.5 µm (0.0030 in) |
| Wavelength | 405 nm |
| Build Materials | UV Curable Plastics; xGPP-Translucent; XGPP-Grey; xPRO410; 3843-ABS-Black; xCE-Black; ABS-Black; xCE-White; xPP405-Black; xPP405-Clear; xPEEK147; x45-Natural; x45-Clear, x45-Black, xFLEX |
More Materials, More Options
Download 2022 Materials Guide for Ultrafast 3D Printing
Download the guide now
3D Printing Technology

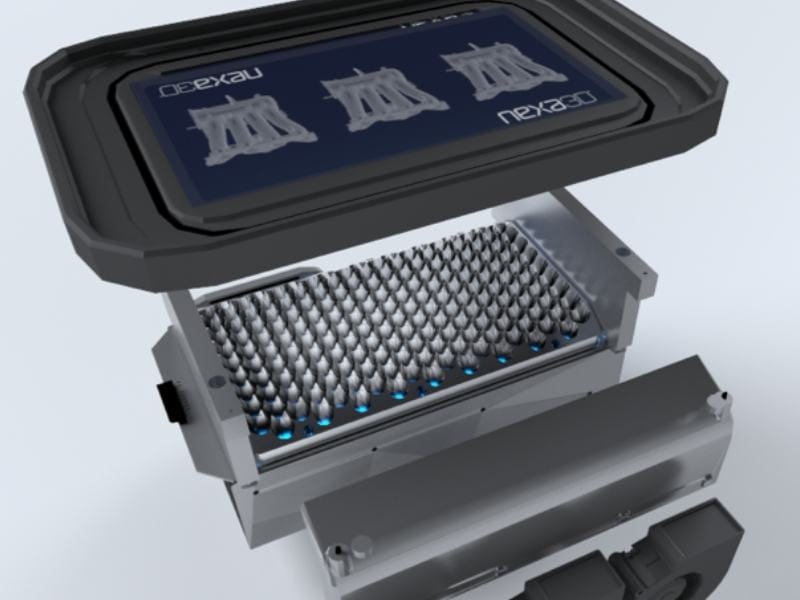

Nexa3D’s print process uses a patented Lubricant Sublayer Photo-curing (LSPc) 3D printing engine. Different from DLP, where edge-to-edge performance can be compromised due to optical distortions, LSPc delivers a uniform, high power and distortion-free image to all areas of the build plate to ensure part-to-part accuracy and uniformity. LSPc, a type of masked stereolithography (mSLA) technology, is faster than stereolithography (SLA) and other mSLA technologies. Our self-lubricated, flexible membrane overcomes the delamination forces that accrue during any inverted, vat based printing process, thus enabling best-in-class print speeds.
Post-Production
xWash and xCure post-processing systems accommodate the full build volume of the NXE 200Pro and can accept up to two build platforms simultaneously for streamlined workflow.
xWash and xCure
Buy NexaX Pro
NexaX Pro software enables process stability and print consistency with an API to make integration of a variety of software tools easy, including assembly parts consolidation, generative design, lightweighting, and MES workflows.
Buy NexaX Pro
Open Material Platform
NXE 200Pro has offers a broad range of functional and general purpose photopolymer materials. The materials are specifically tailored to meet your every need, from modeling to final part production.
