NXE 400Pro

Ultrafast Industrial 3D Printer

The NXE 400Pro photopolymer 3D printer boasts an unprecedented 17L build volume, delivering unmatched speed and throughput without compromising on accuracy or repeatability. The NXE 400Pro industrial 3D printer features patented Lubricant Sublayer Photo-curing (LSPc®) technology, delivering accuracy and tolerances with a superior surface finish by turning SLA 3D printing technology on its head.

Now $49,995

Save $12,900 was $62,895

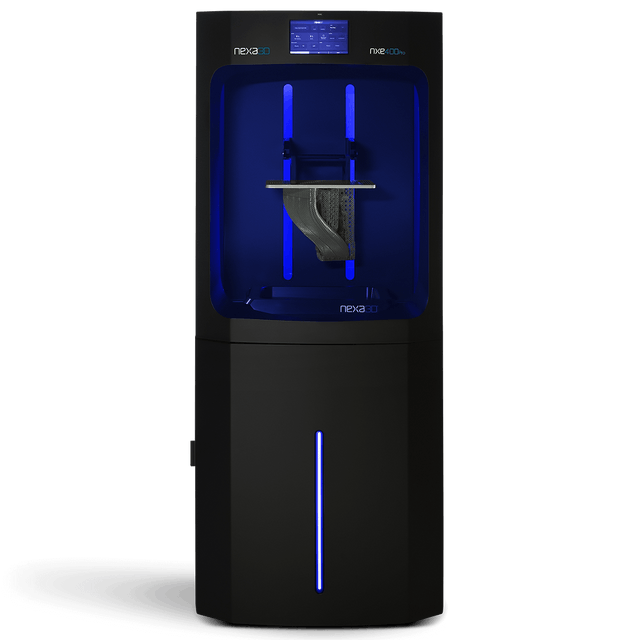

NXE 400Pro Industrial 3D Printer
LSPc technology

6.5x Greater Print Speed

Nexa3D’s patented 3D printing LSPc process enables production speeds that are up to 6.5x faster than other industrial 3D printers from the same class. Uniform exposure and process control also ensure production build speeds at the highest quality levels.

LSPc technology

2.5x Larger Build Volume

Featuring 2.5x greater build volume (17L) compared to SLA and DLP-based technologies, the NXE 400Pro photopolymer 3D printer allows for much larger parts, higher part throughput, and ultimately lower part cost—all with higher-resolution pixels (76.5 µm) and isotropic prints.

Open Material Platform

Broad Material Selection

NXE 400Pro industrial resin 3D printers are scalable to meet manufacturing demand, offering a wide range of materials to meet performance needs — including PP-Like, ABS-Like, and engineering-grade functional materials.

Specifications

Build Volume10.8 x 6.1 x 15.7 inch (274 x 155 x 400 mm)
Max Resolution4K (3840 x 2160)
Pixel Pitch76.5 µm (0.0030 in)
Wavelength405 nm
Build MaterialsUV Curable Plastics; xGPP-Translucent; XGPP-Grey; xPRO410; 3843-ABS-Black; xCE-Black; ABS-Black; xCE-White; xPP405-Black; xPP405-Clear; xPEEK147; x45-Natural; x45-Clear, x45-Black, xFLEX

Download Brochure

More Materials, More Options

Download 2022 Materials Guide for Ultrafast 3D Printing

Material Guide White Paper

Download the guide now


Nexa3D and Addifab 3D Printer Baseball Bats

Wilson Sporting Goods Logo

“Because we can iterate so much quicker, print tools faster than we can machine, and eliminate a couple of the steps in the process, our R&D team can afford to be wrong. This helps us to greatly improve our time-to-market, allowing us to be quick and nimble with our design decision-making process.”

Glen Mason
Manager of Advanced Innovation/Industrialization

View Case Study
PepsiCo Patented Mold 3D Printed Nexa3D

PepsiCo Logo

“Our R&D Team is able to reduce time to obtain functional samples by as much 80%, and reduce tooling costs by as much as 90%. With the NXE 400, we’re able to go from CAD to scale in just 48 hours.”

Max Rodriguez
Senior Manager of Global Packaging

View Case Study

NXE 400Pro vs. Carbon® M3

When it comes to industrial resin 3D printers, the NXE 400Pro and Carbon M3 are the two most popular 3D printers used by OEMs and service providers. Compare Carbon M3 pricing and specs to NXE 400Pro to help you determine which one is better for your particular application.

NXE 400Pro vs Carbon M3

Carbon M3 Pricing





NXE 400Pro Industrial 3D Printer Build Plate
NXE 400Pro 3D Printer Build Volume
Nexa3D NXE 400Pro Industrial 3D Printer Injection Blow Molds
NXE 400Pro ABS-Like 3D Printed Materials

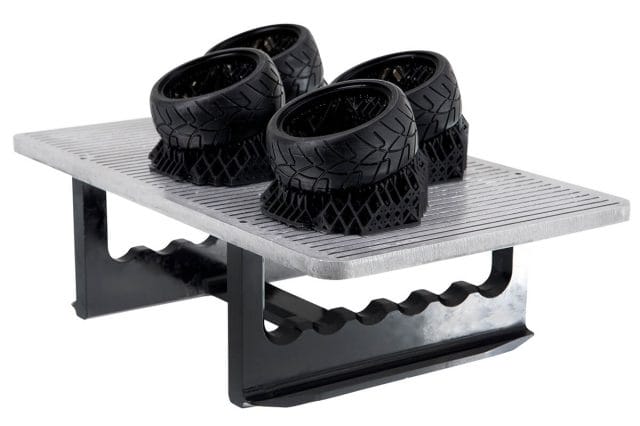

NXE 400Pro xFlex 3D Printed Materials
  • NXE 400Pro Industrial 3D Printer Build Plate Thumbnail
  • NXE 400Pro 3D Printer Interlocking Chain Thumbnail

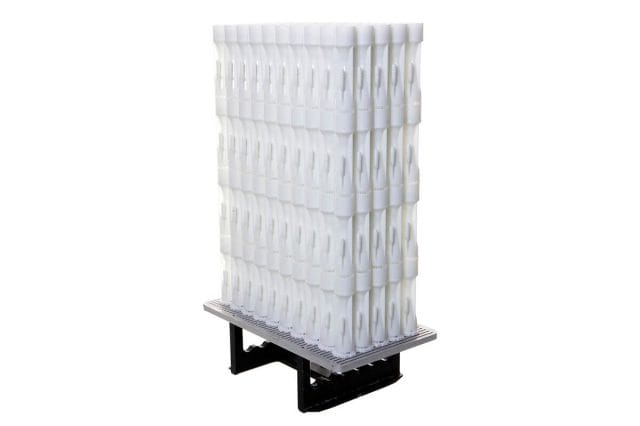

  • Nexa3D NXE 400Pro Tall Build Volume Thumbnail
  • NXE 400Pro ABS-Like 3D Printed Materials Thumbnail
  • NXE 400Pro xFlex 3D Printed Materials Thumbnail

Post-Production

xWash and xCure post-processing systems accommodate the full build volume of the NXE 400Pro and can accept up to two build platforms simultaneously for streamlined workflow.
xWash and xCure

Buy NexaX Pro

NexaX Pro software enables process stability and print consistency with an API to make integration of a variety of software tools easy, including assembly parts consolidation, generative design, lightweighting, and MES workflows.
Buy NexaX Pro

Open Material Platform

NXE 400Pro has offers a broad range of functional and general purpose photopolymer materials. The materials are specifically tailored to meet your every need, from modeling to final part production.
Material Selector
