Desktop Resin 3D Printer
Offering industrial quality and speed at an affordable desktop price. The XiP resin 3D printer combines a compact footprint with a large build volume and fast print speed to deliver high-quality prototypes on your desktop. In addition to an open material platform, it has a broad range of validated rigid and elastomeric materials for all your prototyping and desktop manufacturing needs.
Fast Print Speed
The XiP desktop 3D printer is built on Lubricant Sublayer Photo-curing (LSPc) Technology, allowing users to print at blazing speeds of up to 18 cm per hour.
Open Material Platform
The XiP desktop 3D printer has a fully open material platform providing ultimate flexibility and access to resin 3D printing materials you need, when you need them.
Easily Upgradeable
XiP’s modular structure is designed for frequent use. Industrial-grade components provide optimized usability, serviceability, and upgradability.

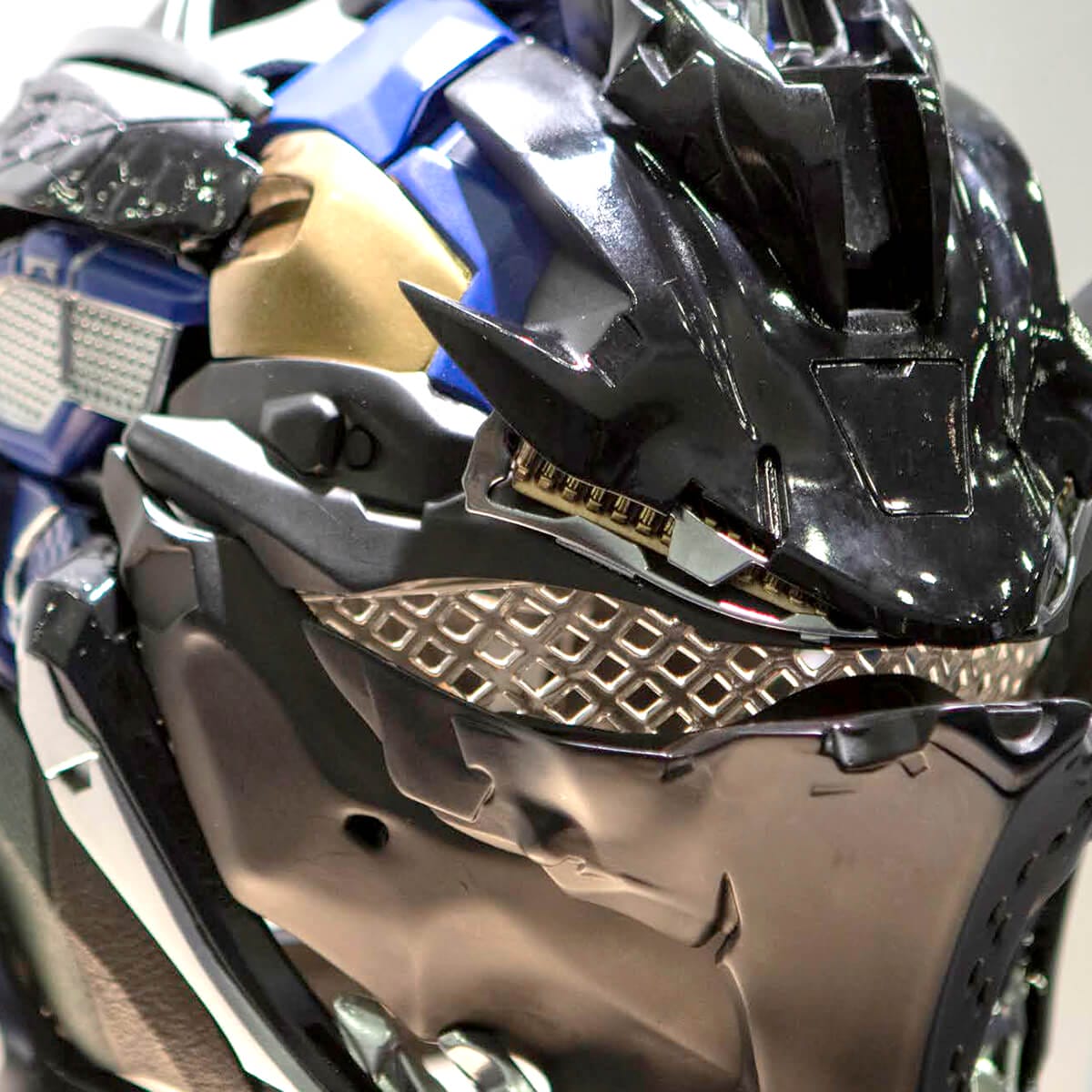

3D Printing for Hollywood
When: June 30th, 1pm ET (10am PT)
What you will learn:
- How is 3D printing used in Hollywood
- How to decrease print time from days to hours (and learn how you can too!)
- How printing and finishing 70+ parts in a weekend is a big deal.
- How ultrafast industrial LSPc technology was brought to desktop 3D printers
Specifications
| Build Volume | 195 mm, Y: 115 mm, Z: 210 mm (7.7 in, Y: 4.5 in, Z: 8.3 in); 4.8 Liter Print Volume |
| Layer Thickness | 50 µm / 100 µm / 200 µm; 0.002 in/ 0.004 in / 0.008 in |
| Max Resolution | 4K Monochrome 9.3” LCD |
| Pixel Size | 52 µm |
| Hardware | Billet Aluminum Enclosure; 420 mm (16.5 inch) W x 350mm (14 inch ) D x 530 mm (21 inch) H; Rigid parallel linear rails, precision Ballscrew Z-axis; Ethernet / USB / Wi-Fi connectivity; 5.5 inch Color LCD Touchscreen Display |
| Build Materials | Henkel, BASF, and Keystone combined with special in-house resins |
NEW MATERIAL
Flame-Retardant Resin Added to Materials Portfolio
xPRO9400-FR, a collaboration with BASF ForwardAM, is a top-tier flame-retardant 3D printing material. It’s strong, halogen-free, and can handle temperatures over 250°C with a UL 94 V-0 rating.
“With XiP’s large build volume, fast print speed, and easier post processing, I’m able to iterate faster and validate new designs in hours versus days.”
– Paul Cilino, Mechanical Design Engineer and Owner at MotoCilino, LLC

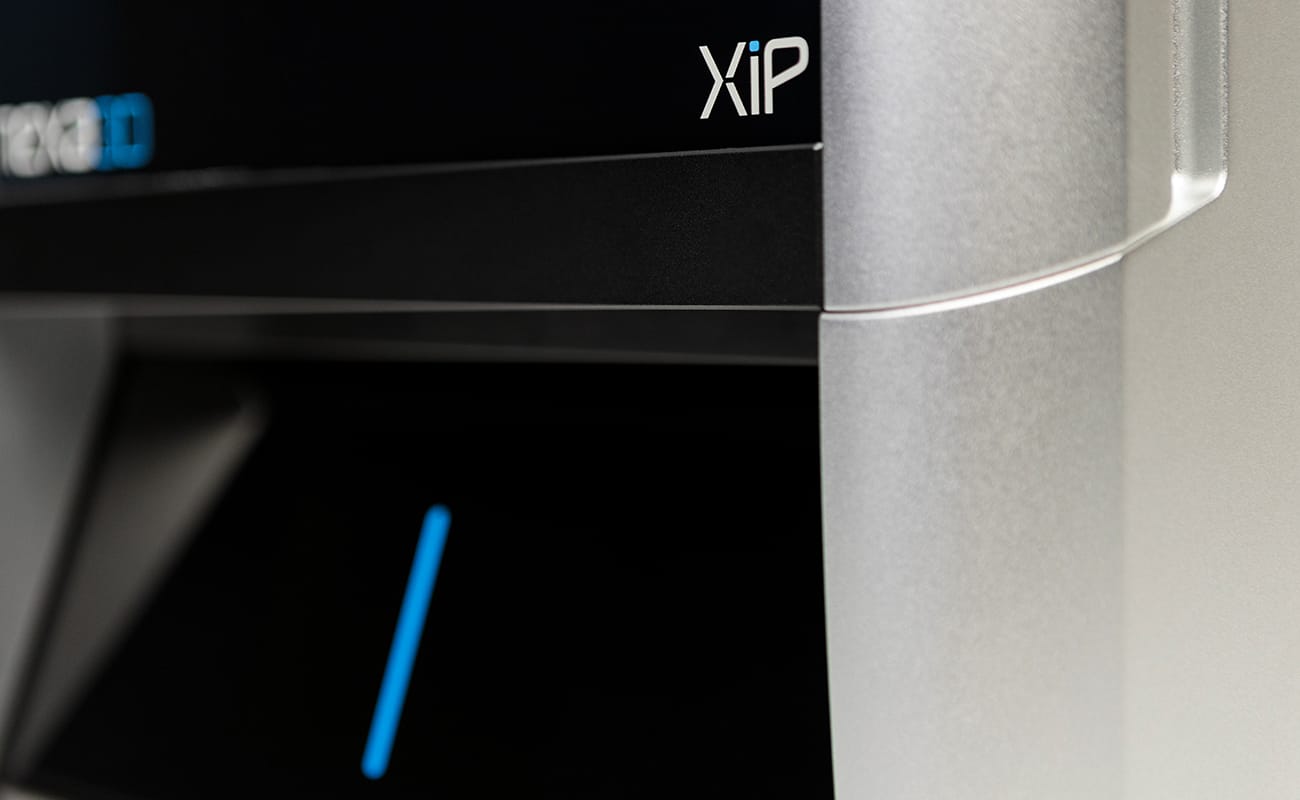

Designed and Built for Sustainable Resin 3D Printing
The design and manufacturing of the XiP desktop resin 3D printer takes into consideration the entire life cycle of the printer. With recyclable packaging and part choices, including an easily recyclable all-aluminum body, this modular desktop 3D printer easily accommodates upgrades over time.
Affordable Resin 3D Printer for Rapid Production
With its open material access, industrial performance, and modular design, the XiP is a best-in-class desktop resin 3D printer that offers the ultimate flexibility. Users can create consistent, high-quality parts and prototypes with reliability and repeatability using both Nexa3D validated resin as well as third party materials.
Introducing xMOLD Resin
Combining design freedom of resin 3D printing with final production materials of injection molding with the acquisition of Addifab and its revolutionary Freeform Injection Molding process.
How Does XiP Compare to the Competition?
When it comes to professional desktop 3D printers, there are multiple factors to consider before making a purchase decision. We put together a quick comparison guide between the XiP and the other commonly used professional desktop resin 3D printer to help you determine what printer is best for your print quality, speed, and total cost of ownership requirements.
EverCare Service Plan
Enhanced services and support designed to help you achieve the highest level of printing success on the XiP including dedicated teams, training, and printer hot-swap.
EverCare Plan
Download NexaX Basic
NexaX generates part-by-part fully customizable support structures, and has features to hollow parts and create internal lattice structures.
Download NexaX
Open Material Platform
Our growing network of the world’s leading material providers—including Henkel, BASF, and Keystone—unlock potential in a variety of applications for various industries.
Material Selector
As Reviewed By
Nexa3D XiP – professional high-speed desktop 3D printing at a competitive price
3D Printing Industry
The Complete Package
- XiP Desktop 3D Printer
- Wash+Cure and XiP Air
- xCLEAN (5L)
- xMODEL15-Gray and xABS3843 (1kg)
- Everlast 2 Membranes (3pk)
- Evercare Service Plan (1 year)
- FREE—NexaX Pro (1 year)
$9,995 was $11,031
3rd-Party Engineering Report
Engineer’s Report – November 2022 by 3D Printing Industry Prepared by: Maël DUPORTAL
What’s in the Report?
- Packaging, Hardware, and Slicer Reaction
- Use of Printer
- Basic Printing Tests (Dimensional Accuracy, Repeatability, etc)
- Real Application Printing Tests (includes gearing, bike pedal, ULA rocket bracket, and generative design bottle holder)
- Post-Processing
- Conclusions
Download the Full 56 Page Report
